Sig-Tech® Intrusive Pig Signaler
Easily Detect Passage of Pigs in a Pipeline
Reliable detection system for cast polyurethane and spherical type pigs with multiple signaling options
Overview
The Sypris® Technologies Sig-Tech® intrusive Pig Signaler can be installed at pre-determined intervals on pipelines to detect the passage of a cast polyurethane pig or spherical type pig.
A trigger extending into the pipeline through a welded boss fitting that will trip when a pig passes, immediately activating the signaling mechanism. The Sig-Tech® pig signaler is easy to install into the boss, and with correct tools can be installed under operating pressure.
Weather and corrosion resistant, the Sig-Tech® is designed to function in the most demanding onshore or offshore environments. With a multitude of signaling mechanisms, there is a model to meet almost any need.
Another high-quality product from Sypris® Technologies - TUBE TURNS® Products. Contact us today with your requirements and ask about other options that are available, specific to meet your needs.
Key Features
Designed for reliable pig detection in the most demanding pipeline environments
Intrusive Design
Trigger extends into pipeline through welded boss fitting for reliable detection
Easy Installation
Can be installed under operating pressure with correct tools
Weather Resistant
Designed to function in demanding onshore or offshore environments
Immediate Activation
Trigger trips when pig passes, immediately activating signaling mechanism
Signaling Mechanisms
Multiple signaling options available including flag indicator, electrical indicator, and combination systems

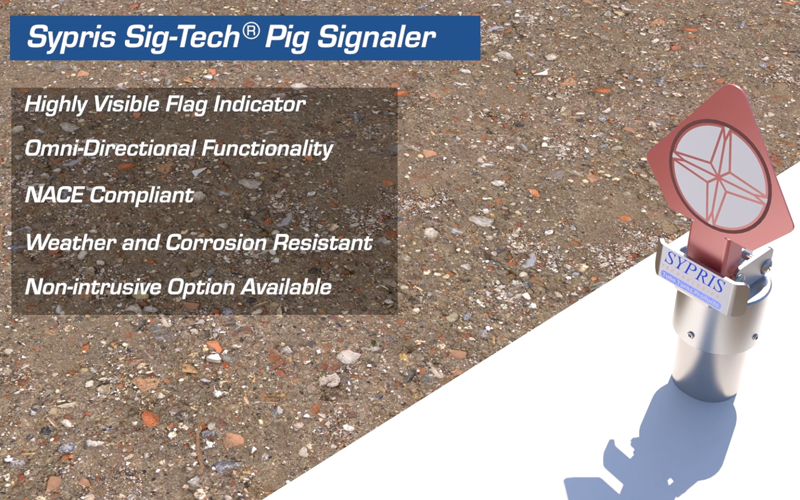

Flag Indicator
Visual flag indication for pig passage detection
Features:
- Visual confirmation
- No power required
- Clear indication
- Weather resistant
Electrical Indicator
Electrical switch activation with 316SS construction
Features:
- 316SS construction
- Electrical signal output
- Remote monitoring capable
- Corrosion resistant
Combination Flag/Electrical
Dual indication system with both visual and electrical signals
Features:
- Dual indication
- Visual and electrical
- Redundant confirmation
- Maximum reliability
Compatible Pig Types
Designed to reliably detect passage of various pig configurations
Cast Polyurethane Pigs
Designed to detect passage of cast polyurethane cleaning and inspection pigs
Spherical Type Pigs
Compatible with spherical pig designs commonly used in pipelines
Installation & Design
The Sig-Tech® signaler does not require any adjustments after installation. The boss is designed per wall thickness requirements and set to the correct intrusion depth.
The signaler is designed to be compatible with other popular brands and can be installed using equivalent tools. This ensures easy integration into existing pipeline systems and maintenance procedures.
The electrical switch is offered standard with 316SS construction for maximum corrosion resistance and reliability in harsh pipeline environments.
Installation Advantages
Designed for easy installation and maintenance-free operation
No Adjustments Required
Signaler requires no adjustments after installation
Pre-Determined Depth
Boss designed per wall thickness with correct intrusion depth
Brand Compatible
Compatible with other popular brands and equivalent installation tools
Under Pressure Install
Can be installed into boss under operating pressure with correct tools
Technical Specifications
Comprehensive specifications for reliable pig detection systems
Design Type
Intrusive trigger mechanism
Installation
Welded boss fitting
Signaling Options
Flag, Electrical, Combination
Switch Construction
316SS (Electrical models)
Environment Rating
Weather and corrosion resistant
Installation Pressure
Can install under operating pressure
Applications
Essential for pipeline operations requiring pig passage monitoring
Pipeline Cleaning Operations
Monitor pig passage during routine cleaning operations
Pipeline Inspection
Track inspection pig progress through pipeline systems
Batching Operations
Detect product separation pigs in multi-product pipelines
Flow Assurance
Ensure proper pig passage for flow assurance programs
Product Details

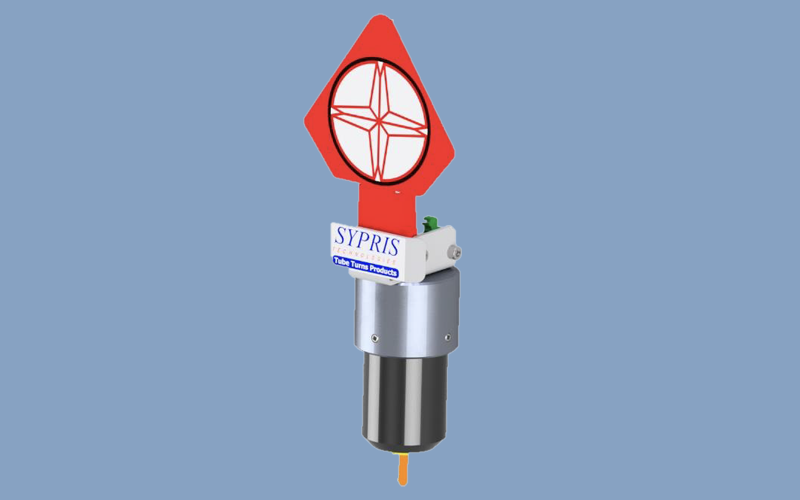

Signaler Components

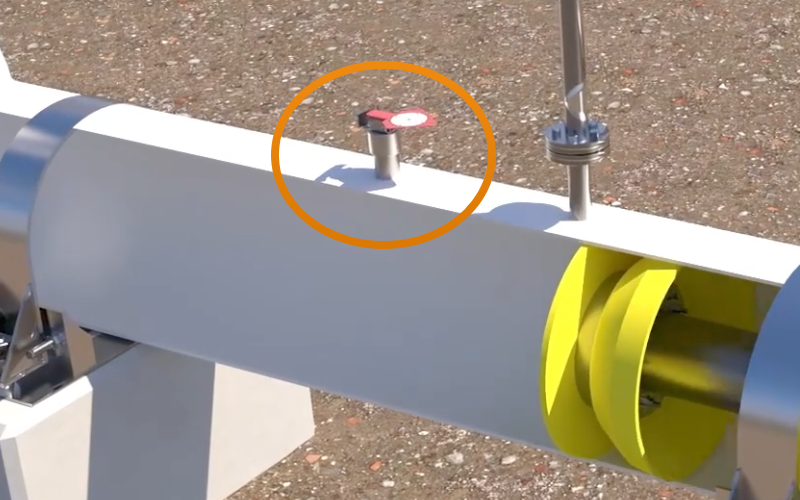

Installation Detail
