Automated Yoke Style Closures
Push-button operation automation
Mechanical, electrical, hydraulic, or pneumatic power sources for safe and convenient operation
Overview
TUBE TURNS® offers Double-Bolt Yoke Style Closures / manways that are readily adaptable to a wide variety of operating aids ranging from single-lever chain and sprocket drives to completely automated designs, which can be operated by the touch of a button.
This rapid-operating open/close automation can be driven by mechanical, electrical, hydraulic, or pneumatic power sources, to provide safe and convenient quick opening and closing for numerous applications beyond the Oil and Gas Industry.
TUBE TURNS® Automated Closures have flexibility of design and can be developed and manufactured to meet your needs. Our Automated Closures are located in industries throughout the world.
Automation Advantages
Automated closures provide significant benefits in safety, efficiency, and operational excellence
Safety
Tight seal prevents leakage and operator exposure to hazardous media
Improved Employee Morale
Operators stationed away from process, reducing exposure to hazardous fluids
Economic Considerations
Opening/closing cycle in less than one minute with push-button operation
Low Maintenance
Simple, direct operation requires minimal maintenance beyond O-ring replacement
Industry Applications
Sypris automated closures serve critical applications across multiple industries worldwide
Supercritical CO2 Extraction
High-pressure vessels for cleaning/purification of filtration media, specialized clothing, pharmaceutical applications, and plant extraction processes
Industries Served:
Autoclaves & Vacuum Chambers
Processing industrial composites, casting impregnation vessels, medical waste sterilizers, and pressure test vessels
Industries Served:
Navy Pressure Chambers
Simulating high-pressure undersea environments with customized access ports and sight glass
Industries Served:
Industrial Processing
Pipeline launchers/receivers and batch processes in various industries
Industries Served:
Automation Styles Available
Multiple automation options to meet your specific operational requirements
Chain & Sprocket Automated Closures
Mechanical automation with chain and sprocket drive systems
Electric Automated Closures
Electric motor driven automation with electronic controls
Hydraulic Automated Closures
Hydraulic power for heavy-duty applications
Pneumatic Automated Closures
Compressed air driven systems for clean applications
Supercritical CO2 Extraction
Sypris' automated quick opening closures / manways have been installed on super critical carbon dioxide (CO2) extraction vessels used for cleaning/purification of filtration media, specialized clothing, pharmaceutical applications and plant extraction processes.
Sypris' automated closures for these high pressure applications allow for reduced process times to increase the number of batches per day.
Autoclaves & Industrial Processing
Sypris' automated quick opening closures / manways can be installed on autoclaves & vacuum chambers for processing industrial composites, casting impregnation vessels, medical waste sterilizers & pressure test vessels.
Sypris' automated closures are supplied in carbon steel, stainless and duplex grades as required by customer.
Navy & Specialized Applications
Sypris' automated quick opening closures / manways have been installed in numerous pressure chambers simulating high pressure undersea environments by US Navy and their contractors.
The quick opening closures are customized with access ports and sight glass to meet each project's specific needs.
Technical Specifications
Engineered to meet demanding industrial requirements and standards
Pressure Classes
ASME Class 150 - 2500
Standards Compliance
ASME Section VIII Division 1 or 2
Orientation
Horizontal or Vertical installation
Certification
"U" stamp and U2A Partial Data Report available
Power Sources & Controls
Hydraulic, pneumatic and electric drives with electronic controls as required
Mechanical
Chain and sprocket drive systems
Electrical
Electric motor with electronic controls
Hydraulic
Hydraulic power systems
Pneumatic
Compressed air driven systems
Materials Available
Wide range of materials to meet customer specifications
Maintenance
Since operation is simple, direct and positive, Automated Closures require little or no maintenance other than replacement of the O-ring and periodic inspection of yoke bolts and nuts for wear. The human element is virtually eliminated in that the automation mechanism of the closure performs all the work.

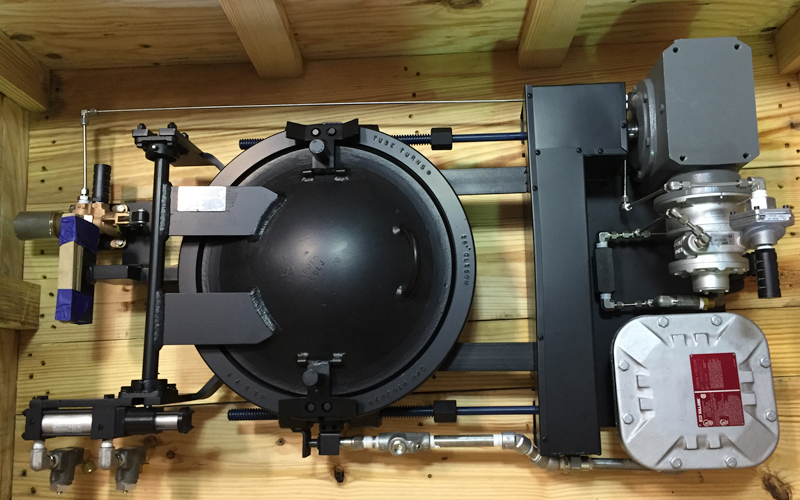

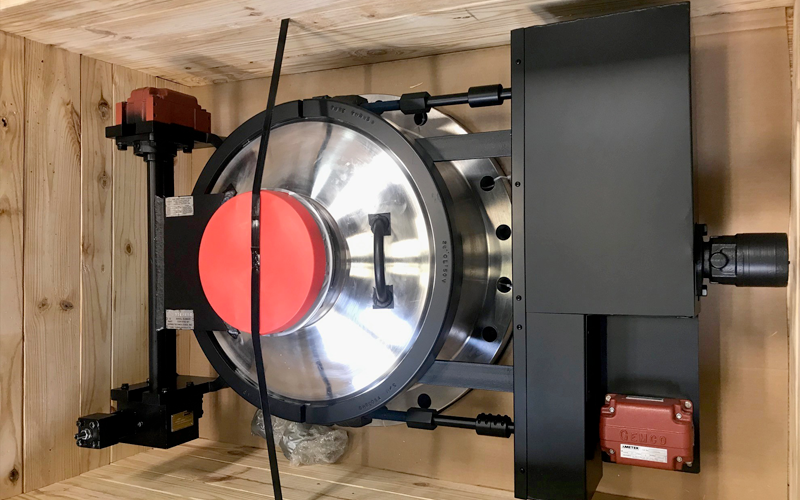

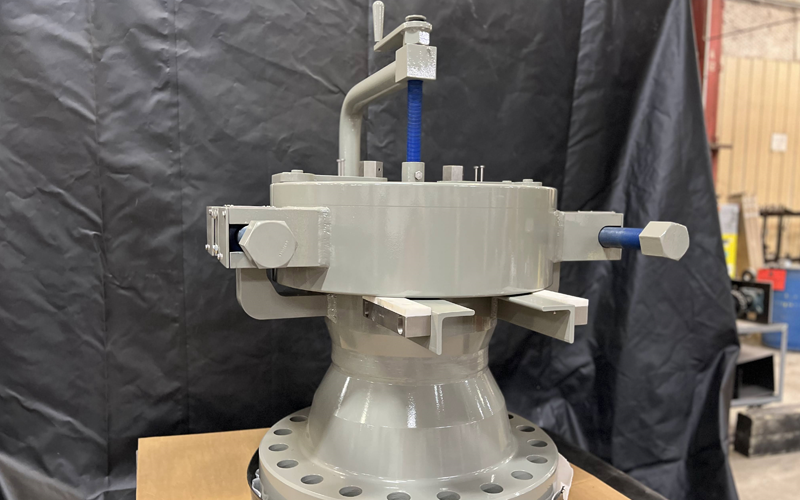

Product Gallery
