Ultra-High Pressure Closures
For Pressures Up to 15,000 psi
Reliable, fast, safe and economical alternative for high-pressure vessels
Overview
TUBE TURNS® UHP Ultra High Pressure closures provide a reliable, fast, safe and economical alternative for high-pressure vessels that require frequent access, such as high-pressure launchers and receivers, filters, or strainers.
Key Features & Benefits
Ultra-High Pressure closures engineered for the most demanding applications
Ultra-High Pressure Rating
Pressure containment up to 15,000 psi (1,034 bar)
Metal-to-Metal Seal
Self-energized seal design for extreme pressure applications
Heavy-Duty Clamping
Dual heavy-duty clamps with 360° clamping contact
Safety Features
Pressure warning device and mechanical interlock (ASME UG-35)
Low Maintenance
Easier to operate and service than bolted connections
Proven Design
Verified through stress calculations and finite element analysis
Robust and Dependable
TUBE TURNS® UHP closures are the heavy-duty version of the TUBE TURNS® legacy line of clamp style (double bolt) closures that span more than 50 years of successful applications in a broad range of sizes and pressures.
This Ultra High Pressure design utilizes a self-energized, metal-to-metal seal that allows pressure containment up to working pressures of 15,000 psi (1,034 bar).
The clamping forces required to obtain this range of pressures is achieved by the use of two forged and machined heavy-duty clamps that are driven by dual heavy-duty, dual actuating drive screws. This combination ensures positive mating of the head and hub sections by encapsulating them in nearly 360° of clamping contact when the clamps are in the closed position.
Low Maintenance
TUBE TURNS® UHP closures include safety features to contain process fluid, protect operators and safeguard the environment. They feature a hinged cover with a pressure warning device and secondary mechanical interlock to prevent accidental opening under pressure.
The fully redundant locking mechanism complies with ASME UG-35 (b). TUBE TURNS® UHP closures are faster and easier to operate than bolted connections.
The low-maintenance design is also easier to service, with all wear parts readily accessible. All components except the main seal ring remain attached to the closure assembly, preventing loss or damage of loose parts.
Technical Specifications
Engineered for extreme pressure applications with proven performance
Maximum Working Pressure
15,000 psi (1,034 bar)
Seal Type
Self-energized metal-to-metal
Clamping System
Dual heavy-duty clamps with dual actuating drive screws
Safety Compliance
ASME UG-35 (b) fully redundant locking mechanism
Applications
Ideal for high-pressure vessels requiring frequent access
High-Pressure Launchers
High-Pressure Receivers
High-Pressure Filters
High-Pressure Strainers
Pressure Vessels Requiring Frequent Access
Critical High-Pressure Operations
Materials
We offer TUBE TURNS® UHP closures in a variety of materials, all of which are ASME/ASTM approved grades. We carefully match material grades and thicknesses to assure compatibility of the closure welding hub with your connection point and welding processes.
All major pressure boundary components furnished with Mill Test Reports (MTRs)
Design & Quality
The TUBE TURNS® UHP closure design has been verified through proven stress calculations and the latest in finite element analysis (FEA) software, establishing a high level of confidence in the structural integrity of the closures.
Quality control audited by accredited third-party organization
Product Gallery

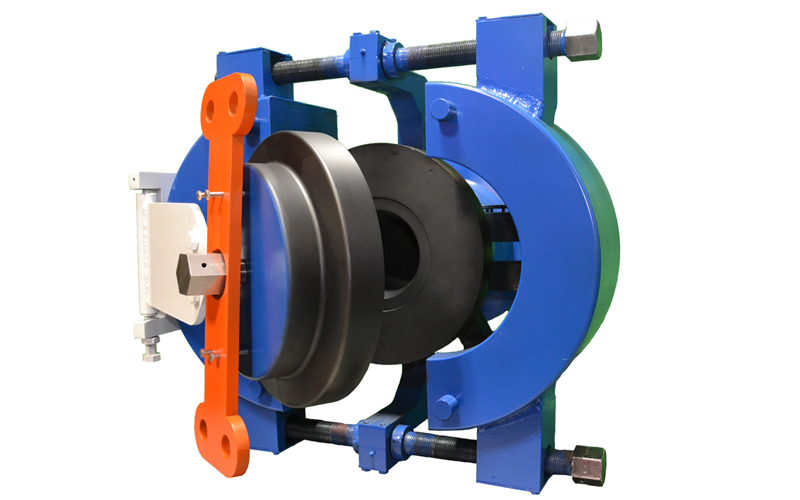

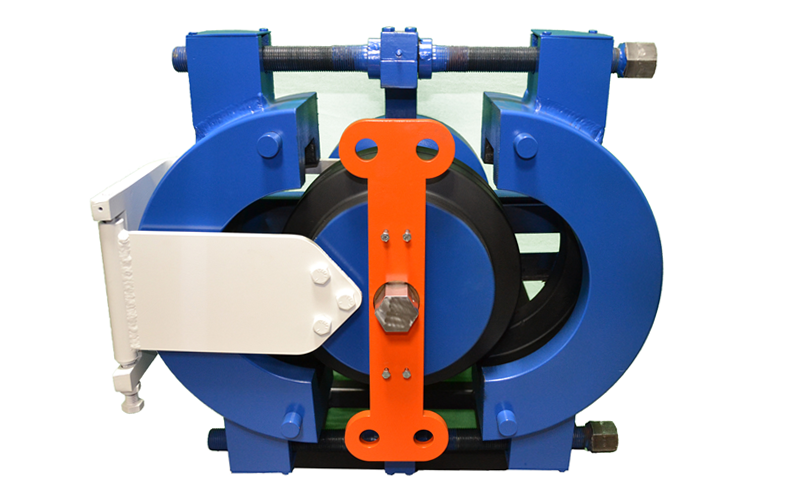

Ultra-High Pressure closures in various configurations
Literature & Documentation
Technical documentation and product information
Ultra-High Pressure Closure (UHP) Brochure
PDF • English
